Name: Thiết bị đo thứ tự pha 8035
SKU: K8035
Rating: 5 (1 reviews)

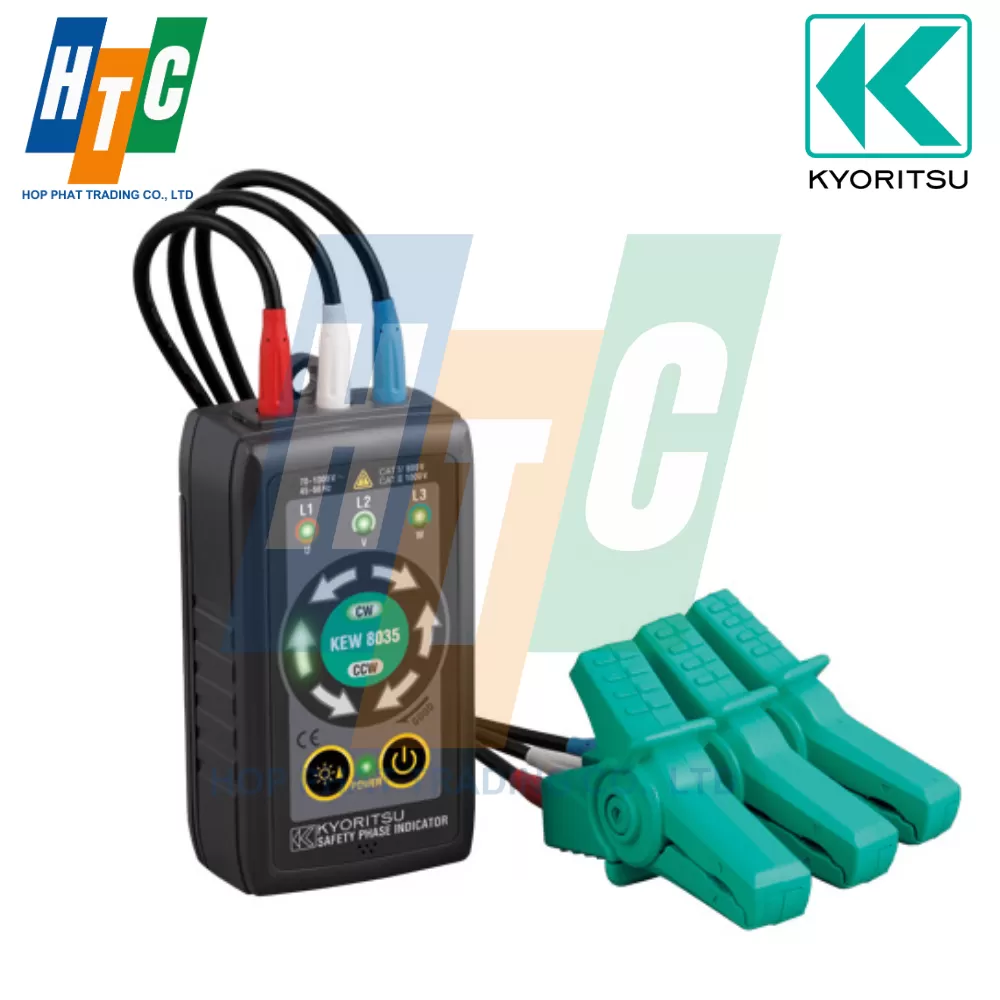

Thiết bị đo thứ tự pha 8035

Mã SP:K8035

|Tình trạng: Còn hàng

Giá: 6,212,850VND7,469,000VND17%

Thương hiệu: kyoritsu
Nước sản xuất: Thailand

Số lượng:

Thêm giỏ hàng Mua ngay

Thông tin sản phẩm

New technology permits safe testing, without the need of direct contact between probes and live wires.
• The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.
• Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
• The instrument can be fixed to a metal panel via the magnet on the back side.
• Wide measuring range for 3 phase installations from 70V to 1000V AC.
• Super brightness function permits clear LED's indication also in sunshine.
• Complies with IEC 61010-1 CAT IV 600V and CAT III 1000V.

Functions	Phase rotation (Clockwise or Counter Clockwise), Presence of open phase
Detection method	Electrostatic induction
Measuring voltage range	From 70 to 1000V AC phase to phase (sine wave, continuous input)
Clamp diameter range	From Ø2.4 to 30mm insulated cables
Measuring frequency range	45 to 66Hz
Phase rotation	Clockwise: Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer Counter Clockwise: Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer
Visual indication	Via LEDs with Super brightness function
Battery voltage warning	Power LED blinks if battery voltage is too low.
Test leads	Double insulated cables, length approx. 70cm
Colours code	L1(U): RedL2(V): WhiteL3(W): Blue
Applicable standards	IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree2, IEC 61326-1, IEC 61557-1, -7
Operating temperature & humidity range	Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation)
Storage temperature & humidity range	Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation)
Power supply (DC battery)	LR6(AA)(1.5V) ×4 * Continuous use: Approx. 100 hours (Auto power off in about 10 min.)
Dimensions	112(L) × 61(W) × 36(D) mm
Weight	380g approx.
Included Accessories	9096 (Carrying case), LR6(AA) × 4, Instruction manual
