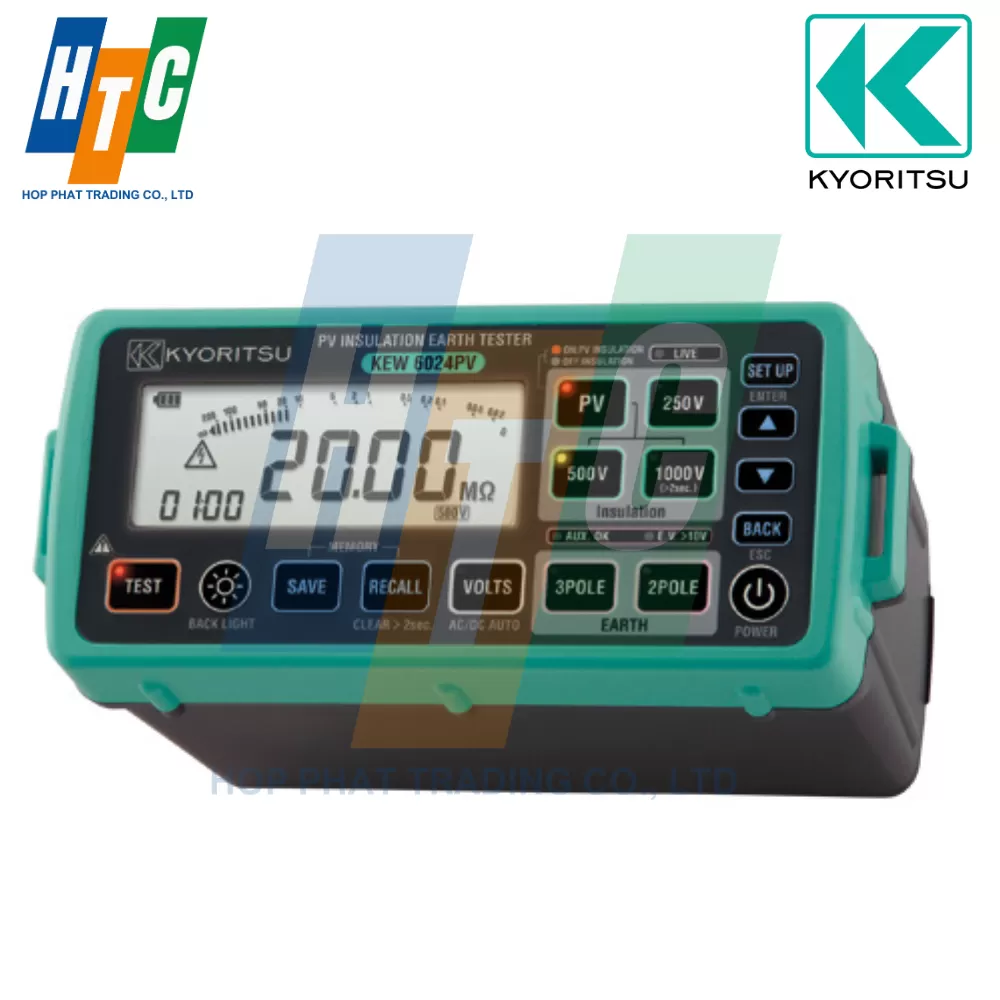

Name: Thiết bị đo nhiều chức năng( Thông mạch,mạch vòng, test điện trở đất….) 6024PV
SKU: k6024PV
Rating: 5 (1 reviews)

Thiết bị đo nhiều chức năng( Thông mạch,mạch vòng, test điện trở đất….) 6024PV

Mã SP:k6024PV

|Tình trạng: Còn hàng

Giá: 16,735,350VND20,119,000VND17%

Thương hiệu: kyoritsu
Nước sản xuất: Japan

Số lượng:

Thêm giỏ hàng Mua ngay

Thông tin sản phẩm

Correct measuring for Insulation resistance even if the panel is under generating power
• Waterproof design: Can measure under the bad weather condition
• Memory function up to 1000 data
• Luminescence button and Backlight

Insulation resistance		PV insulation		Insulation
	Test voltage	500V	1000V	250V	500V	1000V
	Measuring range (Auto range)	20.00/200.0/2000MΩ		20.00/200.0/2000MΩ
	Mid-scale value	―		50MΩ
	Rated current	―		1.0-1.2mA
	Rated current	―		0.25MΩ	0.5MΩ	1MΩ
	First effective measuring range	1.51-200.0MΩ	1.51-1000MΩ	1.51-100.0MΩ	1.51-200.0MΩ	1.51-1000MΩ
	Accuracy	±1.5%rdg±5dgt		±1.5%rdg±5dgt
	Second effective measuring range	0.00-1.50MΩ	0.00-1.50MΩ	1.20-1.50MΩ	1.20-1.50MΩ	1.20-1.50MΩ
	Second effective measuring range	200.1-2000MΩ	1001-2000MΩ	100.1 -2000MΩ	200.1 -2000MΩ	1001 -2000MΩ
	Accuracy	±5.0%rdg±6dgt
	Open circuit voltage	0 - +20%
	Short circuit current	Max 1.5mA
Earth resistance
	Measuring range (Auto range)	20.00/200.0/2000Ω
	Accuracy	±3.0%rdg±0.1Ω (20Ωrange) ±3.0%rdg±3dgt (200/2000Ωrange)
Voltage measurement
	Measuring range	AC 5-600V (45-65Hz)DC ±5-±1000V
	Accuracy	±1.0%rdg±4dgt
General
	Applicable Standards	IEC 61010-1 CAT Ⅲ 600V, CAT IV 300V Pollution2 IEC 61010-2-030, IEC 61010-031(EMC), IEC 60529（IP54）, IEC 61557-1,-2,-5,-10, IEC 61326-1,2-2, EN50581(RoHS)
	Power source	LR6(AA)(1.5V) x 6
	Dimensions / Weight	84(L) x 184(W) x 133(D)mm / Approx. 900g (including batteries)
	Accessories	7196A(Test leads with remote control switch), 7244A(Test lead with alligater clip), 8017(Extension prod), 8072(CAT II standard prod), 8212-USB(USB adaptor with "KEW Report (Software)"), 9155(Shoulder strap), 9156(Carrying case), LR6x6, Instruction manual
	Optional	7243(L-shaped probe), 7245A(Precision measurement cord set), 8016(Hook type prod)
