Name: thiết bị đi điện trở đất 4105DLH
SKU: K4105DLH
Rating: 5 (1 reviews)

thiết bị đi điện trở đất 4105DLH

Mã SP:K4105DLH

|Tình trạng: Còn hàng

Giá: 9,168,300VND11,022,000VND17%

Thương hiệu: kyoritsu
Nước sản xuất: Japan

Số lượng:

Thêm giỏ hàng Mua ngay

Thông tin sản phẩm

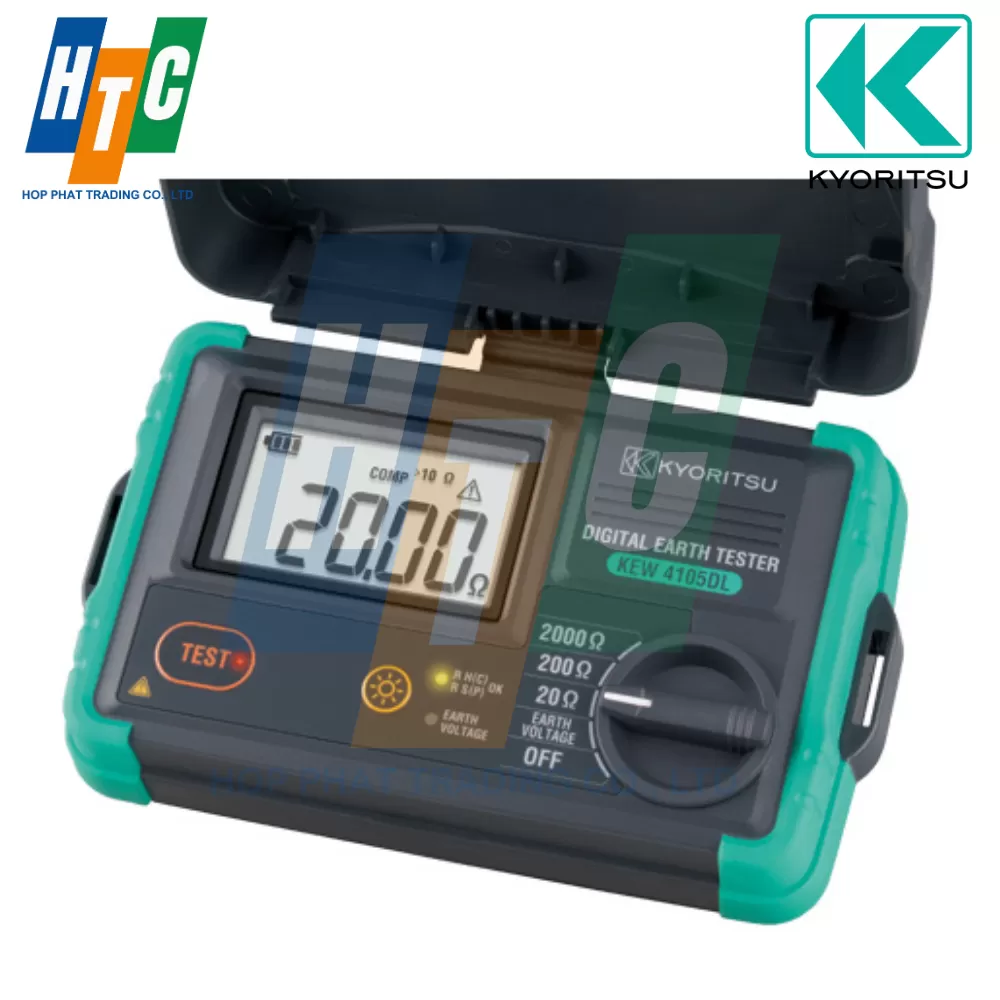

4105DL-H [Hard Case Model] NEW

• 3pole and 2pole Earth Resistance measurement (0.01Ω-2000Ω)
• Waterproof design (IP67)
• Rotary Switch makes the user interface very intuitive
• Large LCD Display with Backlight
• Led to monitor correct / non correct auxiliary earth spike resistance
• Earth Voltage Measurement (AC/DC 0-300V)
• CAT Ⅳ 100V

Cable Reel Set Model	Hard Case Model

Earth resistance measurement		20Ω	200Ω		2000Ω
	Measuring range	0.00 - 2000 Ω
	Display range	0.00 - 20.99 Ω	0.0 - 209.9 Ω		0 - 2099 Ω
	Accuracy*1	±1.5%rdg±0.08 Ω*2	±1.5%rdg±4dgt
	Auxiliary earth resistance*3	<10kΩ	<50kΩ		<100kΩ
	Comparator reference value	10Ω	100Ω		500Ω
Earth voltage measurement
	Measuring range	0 - 300 V AC (45 - 65Hz)		±0 - ±300 V DC
	Display range	0.0 - 314.9 V		0.0 - ±314.9 V
	Accuracy	±1%rdg±4dgt
Overload protection		Earth resistance : 360V AC (10 seconds)
Overload protection		Earth voltage : 360V AC (10 seconds)
Applicable Standards		IEC 61010-1, CAT IV 100 V /CAT III 150 V /CAT II 300 V Pollution degree 3
		IEC 61010-2-030,IEC 61010-031, IEC 61557-1, -5
		IEC 60529 IP67, IEC 61326-1, -2-2, EN50581(RoHS)
Power source		LR6(AA)(1.5V) × 6
Dimensions		121(L) × 188(W) × 59(H) mm (including case lid)
Weight		Approx. 690g (including batteries and case lid)
Accessories for 4105DL		7127B(Simplified measurement probe)
		8041(Auxiliary earth spikes[2 spikes/1set])
		9121(Shoulder strap)
		7267(Cable reel for Earth resistance tester (red))
		7268(Cable reel for Earth resistance tester (yellow))
		7271(Earth resistance test leads)
		9190(Carrying case)
		LR6(AA) × 6, Instruction manual
Accessories for 4105DL-H		7127B(Simplified measurement probe)
		8041(Auxiliary earth spikes[2 spikes/1set])
		9121(Shoulder strap)
		7266(Earth resistance test leads[red-20m, yellow-10m, green-5m/1set])
		9191(Hard case)
		LR6(AA) × 6, Instruction manual
Optional		7272(Precision measurement Cord set)
Optional		8259(Adapter for measurement terminal)
